TYPE FerruleExpanding Ferrule3A-14RMP
Seal Ring

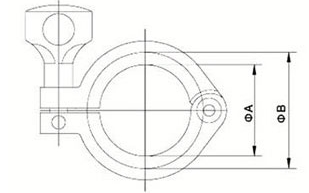

Heavy duty single pin clamp
13MHH
| Part no. | Size | A | B | ||
| 3A | DIN | ISO1127 | |||
| 13MHH025 | 1/2"-3/4" | 20 | 28 | ||
| 13MHH034 | DN10-20 | 10.2-21.3 | 27.8 | 37 | |
| 13MHH050 | 1.5" | DN25-40 | 26.9-42.4 | 44.4 | 53.6 |
| 13MHH064 | 2" | DN50 | 48.3 | 57.8 | 67 |
| 13MHH078 | 2.5" | 60.3 | 71.4 | 80.6 | |
| 13MHH091 | 3" | DN65 | 76.1 | 84 | 94.2 |
| 13MHH106 | 3.5" | DN80 | 88.9 | 99 | 109.2 |
| 13MHH119 | 4" | DN100 | 110 | 122 | |
| 13MHH130 | 4.5" | 114.3 | 123 | 133.2 | |
| 13MHH155 | DN125 | 139.7 | 144 | 159 | |
| 13MHH167 | 6" | 155.4 | 170.4 | ||
| 13MHH183 | DN150 | 168.3 | 172 | 187 | |
| 13MHH218 | 8" | 205 | 220 | ||
| 13MHH234 | DN200 | 219.1 | 222.5 | 237.5 | |
| 13MHH269 | 10" | DN250 | 257 | 272 | |
| 13MHH319 | 12" | DN300 | 308 | 323 | |
