Eigenschaften: Es wird speziell in der hochreinen Halbleiterindustrie verwendet und eignet sich auch...
Eigenschaften: Es wird speziell in der hochreinen Halbleiterindustrie verwendet und eignet sich auch...

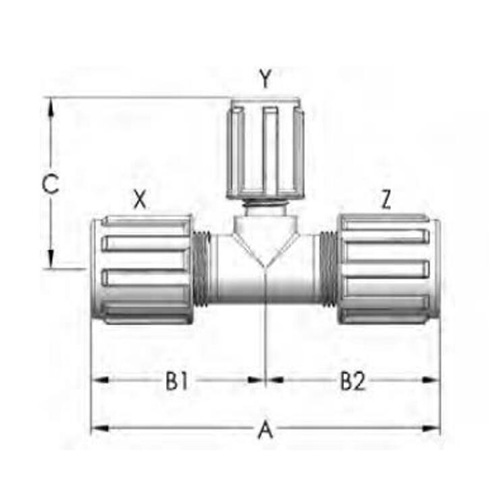

| Teilnummer. | Tube OD X*Y*Z | Öffnung | A | B1 | B2 | C |
| (Zoll) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| UTRA0604041 | 3/8"*1/4"*1/4" | 3,81 mm | 86,87 mm | 44,70 mm | 42,16 mm | 42,16 mm |
| UTRA0604061 | 3/8"*1/4"*3/8" | 3,81 mm | 89,41 mm | 44,70 mm | 44,70 mm | 42,16 mm |
| UTRA0606041 | 3/8"*3/8"*1/4" | 3,81 mm | 86,87 mm | 44,70 mm | 42,16 mm | 44,70 mm |
| UTRA0804041 | 1/2"*1/4"*1/4" | 3,81 mm | 89,66 mm | 47,50 mm | 42,16 mm | 42,16 mm |
| UTRA0804061 | 1/2"*1/4"*3/8" | 3,81 mm | 92,20 mm | 47,50 mm | 44,70 mm | 42,16 mm |
| UTRA0804081 | 1/2"*1/4"*1/2" | 3,81 mm | 95,00 mm | 47,50 mm | 47,50 mm | 42,16 mm |
| UTRA0806061 | 1/2"*3/8"*3/8" | 6,35 mm | 92,20 mm | 47,50 mm | 44,70 mm | 44,70 mm |
| UTRA0806081 | 1/2"*3/8"*1/2" | 6,35 mm | 95,00 mm | 47,50 mm | 47,50 mm | 44,70 mm |
| UTRA0808041 | 1/2"*1/2"*1/4" | 3,81 mm | 89,66 mm | 47,50 mm | 42,16 mm | 47,50 mm |
| UTRA0808061 | 1/2"*1/2"*3/8" | 9,65 mm | 92,20 mm | 47,50 mm | 44,70 mm | 47,50 mm |
| UTRA1204121 | 3/4"*1/4"*3/4" | 3,81 mm | 112,78 mm | 56,39 mm | 56,39 mm | 42,16 mm |
| UTRA1206121 | 3/4"*3/8"*3/4" | 6,35 mm | 112,78 mm | 56,39 mm | 56,39 mm | 44,70 mm |
| UTRA1208081 | 3/4"*1/2"*1/2" | 9,65 mm | 103,89 mm | 56,39 mm | 47,50 mm | 47,50 mm |
| UTRA1208121 | 3/4"*1/2"*3/4” | 9,65 mm | 112,78 mm | 56,39 mm | 56,39 mm | 47,50 mm |
| UTRA1212061 | 3/4"*3/4"*3/8" | 6,35 mm | 101,09 mm | 56,39 mm | 44,70 mm | 56,39 mm |
| UTRA1212081 | 3/4"*3/4"*1/2" | 9,65 mm | 103,89 mm | 56,39 mm | 47,50 mm | 56,39 mm |
| UTRA1604161 | 1"*1/4"*1" | 3,81 mm | 137,16 mm | 68,58 mm | 68,58 mm | 51,31 mm |
| UTRA1606161 | 1"*3/8"*1" | 6,35 mm | 137,16 mm | 68,58 mm | 68,58 mm | 54,40 mm |
| UTRA1608161 | 1"*1/2"*1" | 9,65 mm | 137,16 mm | 68,58 mm | 68,58 mm | 57,40 mm |
| UTRA1612161 | 1"*3/4"*1" | 16,00 mm | 137,16 mm | 68,58 mm | 68,58 mm | 56,39 mm |
| UTRA1612121 | 1"*3/4"*3/4" | 16,00 mm | 124,97 mm | 68,58 mm | 56,39 mm | 56,39 mm |
| UTRA1616081 | 1"*1"*1/2" | 9,65 mm | 124,97 mm | 68,58 mm | 56,39 mm | 68,58 mm |
| UTRA1616121 | 1"*1"*3/4” | 16,00 mm | 124,97 mm | 68,58 mm | 56,39 mm | 68,58 mm |
