Eigenschaften: Es wird speziell in der hochreinen Halbleiterindustrie verwendet und eignet sich auch...
Es handelt sich um eine Spezialverbindung, die eine sichere und effiziente Verteilung von hochreinen...

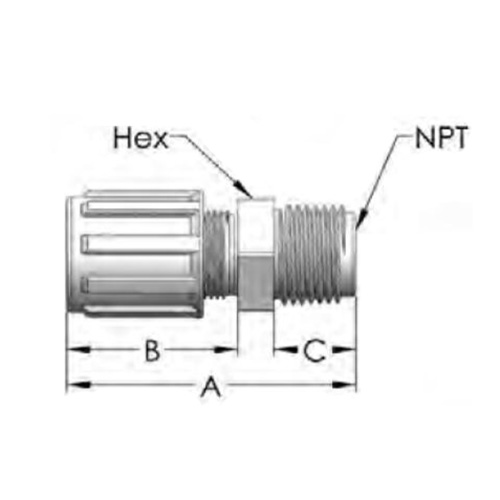

| Teilnummer. | Tube OD | NPT-Gewinde | Öffnung | A | B | C | Hex |
| (Zoll) | (Zoll) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| MCA04021 | 1/4" | 1/8" | 3,81 mm | 48,51 mm | 29,46 mm | 11,43 mm | 15.88 mm |
| MCA04041 | 1/4" | 1/4” | 3,81 mm | 50,80 mm | 29,46 mm | 13,97 mm | 15.88 mm |
| MCA04061 | 1/4" | 3/8" | 3,81 mm | 50,80 mm | 29,46 mm | 13,97 mm | 17,46 mm |
| MCA04081 | 1/4" | 1/2" | 3,81 mm | 53,85 mm | 29,46 mm | 16.76 mm | 20,64 mm |
| MCA06021 | 3/8" | 1/8" | 4,57 mm | 53,09 mm | 32,26 mm | 13,97 mm | 20,64 mm |
| MCA06041 | 3/8" | 1/4” | 6,35 mm | 53,59 mm | 32,26 mm | 13,97 mm | 20,64 mm |
| MCA06061 | 3/8" | 3/8" | 6,35 mm | 53,59 mm | 32,26 mm | 13,97 mm | 20,64 mm |
| MCA06081 | 3/8" | 1/2" | 6,35 mm | 56,13 mm | 32,26 mm | 16.76 mm | 23,81 mm |
| MCA06121 | 3/8" | 3/4” | 6,35 mm | 56,39 mm | 32,26 mm | 16.76 mm | 30,16 mm |
| MCA06161 | 3/8" | 1" | 6,35 mm | 60,71 mm | 32,26 mm | 21,59 mm | 36,51 mm |
| MCA08041 | 1/2” | 1/4” | 7,40 mm | 55,88 mm | 34,54 mm | 13,97 mm | 23,81 mm |
| MCA08061 | 1/2” | 3/8" | 9,65 mm | 55,88 mm | 34,54 mm | 13,97 mm | 23,81 mm |
| MCA08081 | 1/2” | 1/2" | 9,65 mm | 58,93 mm | 34,54 mm | 16.76 mm | 23,81 mm |
| MCA08121 | 1/2” | 3/4” | 9,65 mm | 58,93 mm | 34,54 mm | 16.76 mm | 30,16 mm |
| MCA08161 | 1/2” | 1" | 9,65 mm | 63,75 mm | 34,54 mm | 21,84 mm | 36,51 mm |
| MCA12061 | 3/4” | 3/8" | 9,65 mm | 60,20 mm | 38,61 mm | 14.22 mm | 23,81 mm |
| MCA12081 | 3/4” | 1/2" | 12,95 mm | 62,99 mm | 38,61 mm | 17.02 mm | 30,16 mm |
| MCA12121 | 3/4” | 3/4” | 16,00 mm | 62,99 mm | 38,61 mm | 17.02 mm | 30,16 mm |
| MCA12161 | 3/4” | 1" | 16,00 mm | 67,56 mm | 38,61 mm | 21,59 mm | 36,51 mm |
| MCA16081 | 1" | 1/2" | 12,95 mm | 68,33 mm | 43,94 mm | 17.02 mm | 36,51 mm |
| MCA16121 | 1" | 3/4” | 16.76 mm | 68,33 mm | 43,94 mm | 17.02 mm | 36,51 mm |
| MCA16161 | 1" | 1" | 22,35 mm | 73,15 mm | 43,94 mm | 21,84 mm | 36,51 mm |
