Die PFA Plug Valve PPV Serie ist für hochreine Halbleiteranwendungen konzipiert. Entwickelt mit gef...
PFA-Reduzier-Verschraubungsbogen - CJUER Merkmale: wird speziell in der hochreinen Halbleiterindustr...

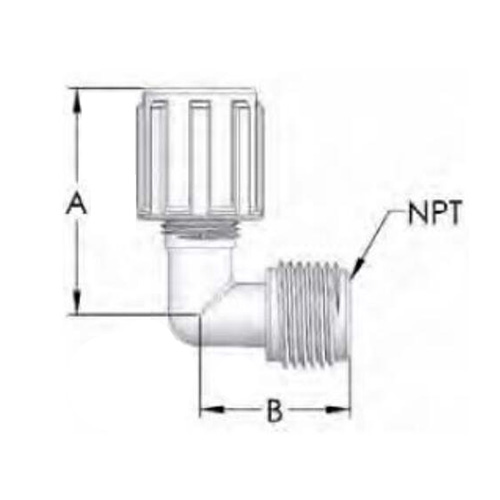

| Teilnummer. | Tube OD | NPT-Gewinde | Öffnung | A | B |
| (Zoll) | (Zoll) | (mm) | (mm) | (mm) | |
| MEA04021 | 1/4" | 1/8" | 3.81 | 42.16 | 26.92 |
| MEA04041 | 1/4" | 1/4” | 3.81 | 42.16 | 26.92 |
| MEA04061 | 1/4" | 3/8" | 3.81 | 42.16 | 28.50 |
| MEA04081 | 1/4" | 1/2" | 3.81 | 42.16 | 29.70 |
| MEA06021 | 3/8" | 1/8" | 4.57 | 44.70 | 26.90 |
| MEA06041 | 3/8" | 1/4” | 6.35 | 44.70 | 26.90 |
| MEA06061 | 3/8" | 3/8" | 6.35 | 44.70 | 28.50 |
| MEA06081 | 3/8" | 1/2" | 6.35 | 44.70 | 29.70 |
| MEA08041 | 1/2” | 1/4” | 7.40 | 47.24 | 26.92 |
| MEA08061 | 1/2” | 3/8" | 9.65 | 47.24 | 28.50 |
| MEA08081 | 1/2” | 1/2" | 9.65 | 47.24 | 29.70 |
| MEA08121 | 1/2” | 3/4” | 12.45 | 47.24 | 34.55 |
| MEA12061 | 3/4” | 3/8" | 9.14 | 56.13 | 31.20 |
| MEA12081 | 3/4” | 1/2" | 13.46 | 56.13 | 35.55 |
| MEA12121 | 3/4” | 3/4” | 16.00 | 56.13 | 34.80 |
| MEA12161 | 3/4” | 1" | 16.00 | 56.13 | 45.70 |
| MEA16081 | 1" | 1/2" | 12.95 | 68.60 | 34.80 |
| MEA16121 | 1" | 3/4” | 16.76 | 68.60 | 41.65 |
| MEA16161 | 1" | 1" | 22.10 | 68.60 | 45.70 |
