Eigenschaften: Es wird speziell in der hochreinen Halbleiterindustrie verwendet und eignet sich auch...
PFA-Reduzier-Verschraubungsbogen - CJUER Merkmale: wird speziell in der hochreinen Halbleiterindustr...

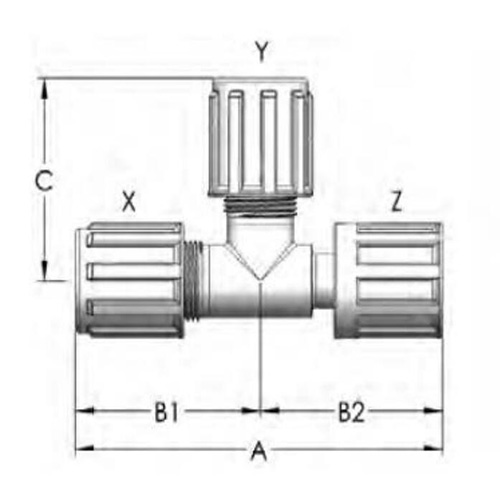

| Teilnummer. | X | Y | Z (Raumsparen) | Öffnung | A | B1 | B2 | C |
| (Zoll) | (Zoll) | (Zoll) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RTS1A040404S1 | 1/4" | 1/4" | 1/4" | 3,81 mm | 83,82 mm | 42,16 mm | 41,66 mm | 42,16 mm |
| RTS1A040808S1 | 1/4" | 1/2" | 1/2" | 3,81 mm | 88,90 mm | 42,16 mm | 46,74 mm | 47,50 mm |
| RTS1A060406S1 | 3/8" | 1/4" | 3/8" | 3,81 mm | 88,65 mm | 44,70 mm | 43,94 mm | 42,16 mm |
| RTS1A060606S1 | 3/8" | 3/8" | 3/8" | 6,35 mm | 88,65 mm | 44,70 mm | 43,94 mm | 44,70 mm |
| RTS1A060608S1 | 3/8" | 3/8" | 1/2" | 6,35 mm | 91,44 mm | 44,70 mm | 46,74 mm | 44,70 mm |
| RTS1A060808S1 | 3/8" | 1/2" | 1/2" | 6,35 mm | 91,44 mm | 44,70 mm | 46,74 mm | 47,50 mm |
| RTS1A061212S1 | 3/8" | 3/4" | 3/4" | 6,35 mm | 98,81 mm | 44,70 mm | 54,10 mm | 56,39 mm |
| RTS1A080408S1 | 1/2" | 1/4" | 1/2" | 3,81 mm | 94,23 mm | 47,50 mm | 46,74 mm | 42,16 mm |
| RTS1A080606S1 | 1/2" | 3/8" | 3/8" | 6,35 mm | 91,44 mm | 47,50 mm | 43,94 mm | 44,70 mm |
| RTS1A080608S1 | 1/2" | 3/8" | 1/2" | 6,35 mm | 94,23 mm | 47,50 mm | 46,74 mm | 44,70 mm |
| RTS1A080806S1 | 1/2" | 1/2" | 3/8" | 6,35 mm | 91,44 mm | 47,50 mm | 43,94 mm | 47,50 mm |
| RTS1A080808 | 1/2" | 1/2" | 1/2" | 9,65 mm | 94,23 mm | 47,50 mm | 43,94 mm | 47,50 mm |
| RTS1A080812S1 | 1/2" | 1/2" | 3/4" | 9,65 mm | 101,60 mm | 47,50 mm | 54,10 mm | 47,50 mm |
| RTS1A120412S1 | 3/4" | 1/4" | 3/4" | 3,81 mm | 110,49 mm | 56,39 mm | 54,10 mm | 42,16 mm |
| RTS1A120612S1 | 3/4" | 3/8" | 3/4" | 6,35 mm | 110,49 mm | 56,39 mm | 54,10 mm | 44,70 mm |
| RTS1A120812S1 | 3/4" | 1/2" | 3/4" | 9,65 mm | 110,49 mm | 56,39 mm | 54,10 mm | 47,50 mm |
| RTS1A121208S1 | 3/4" | 3/4" | 1/2" | 9,65 mm | 103,12 mm | 56,39 mm | 46,74 mm | 56,39 mm |
| RTS1A121212S1 | 3/4" | 3/4" | 3/4" | 16,00 mm | 110,49 mm | 56,39 mm | 54,10 mm | 56,39 mm |
| RTS1A160416S1 | 1" | 1/4" | 1" | 16,00 mm | 138,18 mm | 68,58 mm | 69,60 mm | 51,31 mm |
| RTS1A160616S1 | 1" | 3/8" | 1" | 6,35 mm | 138,18 mm | 68,58 mm | 69,60 mm | 54,10 mm |
| RTS1A160816S1 | 1" | 1/2" | 1" | 9,65 mm | 138,18 mm | 68,58 mm | 69,60 mm | 57,40 mm |
| RTS1A161216S1 | 1" | 3/4" | 1" | 16,00 mm | 138,18 mm | 68,58 mm | 69,60 mm | 56,39 mm |
| RTS1A161612S1 | 1" | 1" | 3/4" | 16,00 mm | 125,48 mm | 68,58 mm | 69,60 mm | 68,58 mm |
| RTS1A161616S1 | 1" | 1" | 1" | 22,35 mm | 138,18 mm | 68,58 mm | 69,60 mm | 68,58 mm |
