PFA-Mannesanschluss - CJMC Merkmale: wird speziell in der hochreinen Halbleiterindustrie eingesetzt ...
PFA Flare Nut - UNA, Hergestellt aus ultrareinen PFA-Rohstoffen, hergestellt in einer sauberen Werks...

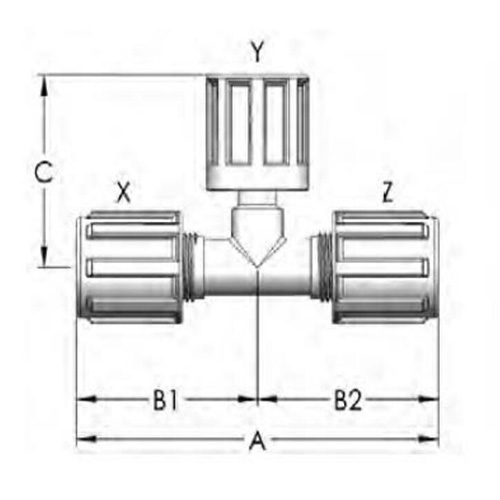

| PArt. Nr. | X | Y (Raumsparen) | Z | Öffnung | A | B1 | B2 | C |
| (Zoll) | (Zoll) | (Zoll) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| BTSA0404S041 | 1/4" | 1/4" | 1/4" | 3,81 mm | 84,33 mm | 42,16 mm | 42,16 mm | 41,66 mm |
| BTSA0406S041 | 1/4" | 3/8" | 1/4" | 3,81 mm | 84,33 mm | 42,16 mm | 42,16 mm | 43,94 mm |
| BTSA0604S061 | 3/8" | 1/4" | 3/8" | 3,81 mm | 89,41 mm | 44,70 mm | 44,70 mm | 41,66 mm |
| BTSA0606S061 | 3/8" | 3/8" | 3/8" | 6,35 mm | 89,41 mm | 44,70 mm | 44,70 mm | 41,66 mm |
| BTSA0608S061 | 3/8" | 1/2" | 3/8" | 6,35 mm | 89,41 mm | 44,70 mm | 47,50 mm | 46,74 mm |
| BTSA0804S081 | 1/2" | 1/4" | 1/2" | 3,81 mm | 95,00 mm | 47,50 mm | 47,50 mm | 41,66 mm |
| BTSA0808S041 | 1/2" | 1/2" | 1/4" | 3,81 mm | 89,66 mm | 47,50 mm | 42,16 mm | 46,74 mm |
| BTSA0808S061 | 1/2" | 1/2" | 3/8" | 6,35 mm | 92,20 mm | 47,50 mm | 44,70 mm | 46,74 mm |
| BTSA0808S081 | 1/2" | 1/2" | 1/2" | 9,65 mm | 95,00 mm | 47,50 mm | 47,50 mm | 46,74 mm |
| BTSA0812S081 | 1/2" | 3/4" | 1/2" | 9,65 mm | 95,00 mm | 47,50 mm | 47,50 mm | 54,10 mm |
| BTSA1204S121 | 3/4" | 1/4" | 3/4" | 3,81 mm | 112,78 mm | 56,39 mm | 56,39 mm | 41,66 mm |
| BTSA1206S121 | 3/4" | 3/8" | 3/4" | 6,35 mm | 112,78 mm | 56,39 mm | 56,39 mm | 43,94 mm |
| BTSA1208S081 | 3/4" | 1/2" | 1/2" | 9,65 mm | 103,89 mm | 56,39 mm | 47,50 mm | 46,74 mm |
| BTSA1208S121 | 3/4" | 1/2" | 3/4" | 9,65 mm | 112,78 mm | 56,39 mm | 56,39 mm | 50,04 mm |
| BTSA1212S121 | 3/4" | 3/4" | 3/4" | 16,00 mm | 112,78 mm | 56,39 mm | 56,39 mm | 54,10 mm |
| BTSA1216S121 | 3/4" | 1" | 3/4" | 16,00 mm | 112,78 mm | 56,39 mm | 56,39 mm | 69,60 mm |
| BTSA1608S161 | 1" | 1/2" | 1" | 9,65 mm | 137,16 mm | 68,58 mm | 68,58 mm | 53,09 mm |
| BTSA1612S161 | 1" | 3/4" | 1" | 16,00 mm | 137,16 mm | 68,58 mm | 68,58 mm | 56,64 mm |
| BTSA1616S161 | 1" | 1" | 1" | 22,35 mm | 137,16 mm | 68,58 mm | 68,58 mm | 69,60 mm |
